ULTRA-HIGH TEMPERATURE SAMARIUM COBALT MAGNETS

In 1995, the United States Air Force in conjunction with other branches of the US Department of Defense required magnets that operated at temperatures greater than 400°C. In response to this need, Electron Energy Corporation developed a new class of Sm2Co17 magnets that offer the key performance and stability features SmCo magnets of for use at temperatures up to 550°C. These new magnets were called Ultra-High Temperature Samarium Cobalt (UHT SmCo).

SUCCESS IN MISSION-CRITICAL APPLICATIONS

When NASA launched Deep Space 1—the first in a series of deep-space and Earth-orbiting missions conducted under the New Millennium Program—EEC’s UHT SmCo magnets were used. These magnets were a key component in the spacecraft’s ion propulsion engines manufactured by Hughes Electron Dynamics. In an extremely successful extended mission, Deep Space 1 encountered the comet Borrelly and returned major scientific data as well the best comet photographs ever taken at the time.

UHT SmCo is the ultimate choice for applications including:

  • Rotors
  • Electric Motors
  • Generators and Actuators
  • Ion Propulsion Engines
  • Drive Components
  • Couplings
  • Sensors

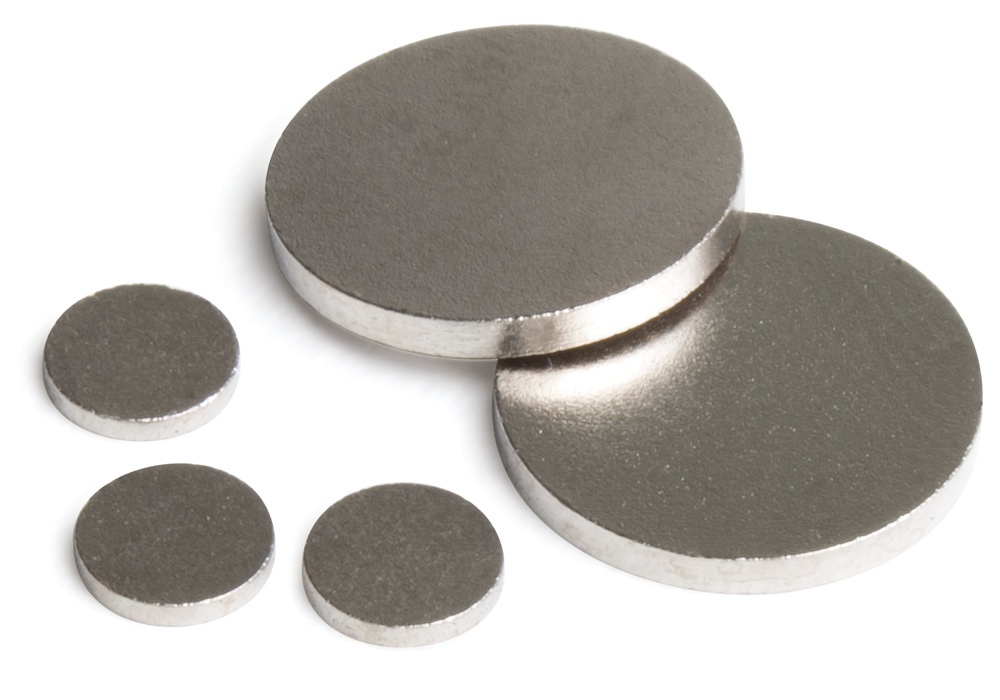

Ultra-High Temperature Samarium Cobalt Discs

Max. Operating Temperatures

EEC Ultra High Temp SmCo Max Operating Temp

Ultra-High Temperature SmCo

  • Stable at Extreme Temperatures (400°C to 550°C)
  • Ideal For Most Applications (> 400°C should be plated)
  • High Demagnetization Resistance

EEC UHT SmCo Grades

EEC Ultra High Temp SmCo Grades

Ultra-High Temp. SmCo Grades

  • EEC 18-T550 (Br 8.7)
  • EEC 20-T500 (Br 9.2)
  • EEC 22-T450 (Br 9.6)
  • EEC 24-T400 (Br 10)
  • EEC 26-T350 (Br 10.5)
